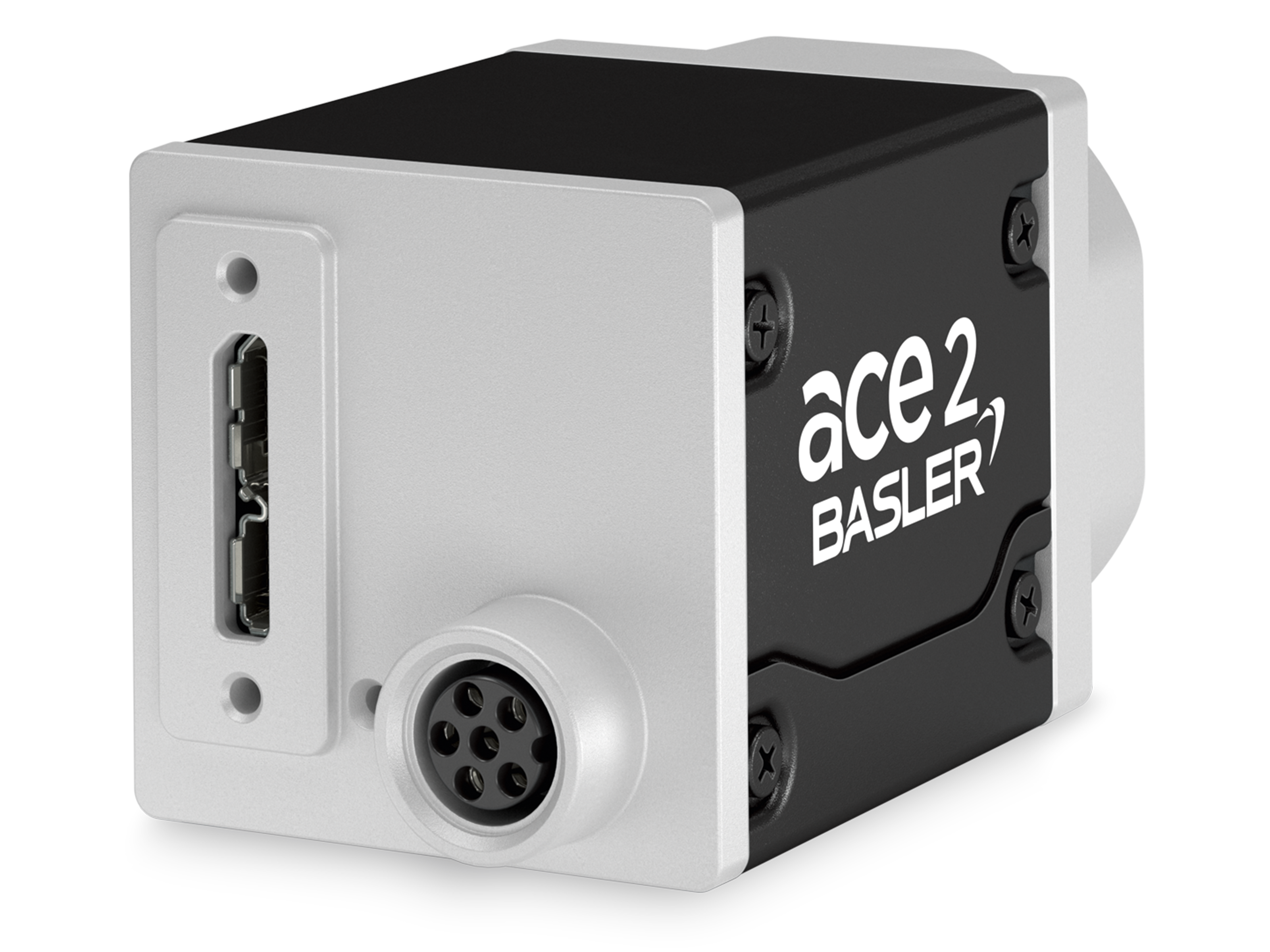

Basler ace 2 X a2A2560-70umSWIR

IMX992 Sensor
70 fps Frame rate
USB 3.0 Interface
5.2 MP Resolution (MP)
1/1,4'' Sensor Format

The Basler a2A2560-70umSWIR USB 3.0 camera with the Sony IMX992 InGaAs sensor delivers 72 images per second at 5.3 MP resolution. The camera generates images in the wavelength range from 0.4 µm to 1.7 µm.

Classified as dual use product (ECCN 6A003.b.4.a)
Regulation (EU) 2021/821
Export license required

Net list price	€15,990.00
Delivery time	Standardapprox. 3 weeks

Series Production	now
Order Number	109373
Product Family	ace 2 X
Camera Category	Area Scan Camera

Sensor Vendor	Sony
Sensor	IMX992
Shutter	Global Shutter
Sensor Format	1/1,4''
Sensor Diagonal	11.4 mm
Sensor Type	InGaAs
Sensor Size	8.8 mm × 7.1 mm
Resolution (H x V)	2560 px × 2048 px
Resolution (MP)	5.2 MP
Pixel Size (H x V)	3.45 μm × 3.45 μm
Frame rate	70 fpsCalculate individual frame rate
Mono/Color	Mono
Spectrum	Visible + SWIR

Interface	USB 3.0
Image Data Interface	USB 3.0, nominal max. 5 Gbit/s (SuperSpeed)
Pixel Bit Depth	8 bits 10 bits 12 bits
Synchronization	free-run hardware trigger software trigger
Exposure Control	hardware trigger programmable via the camera API
Digital Input	1
General Purpose I/O	2
Power Supply	Via USB 3.0 interface
Power Requirements (typical)	3.5 W

Housing Type	Box
Housing Size (L x W x H)	42.8 mm x 29 mm x 29 mm
Weight	90 g
Lens Mount	C-mount
Operating Temperature	-10 °C - 50 °C
