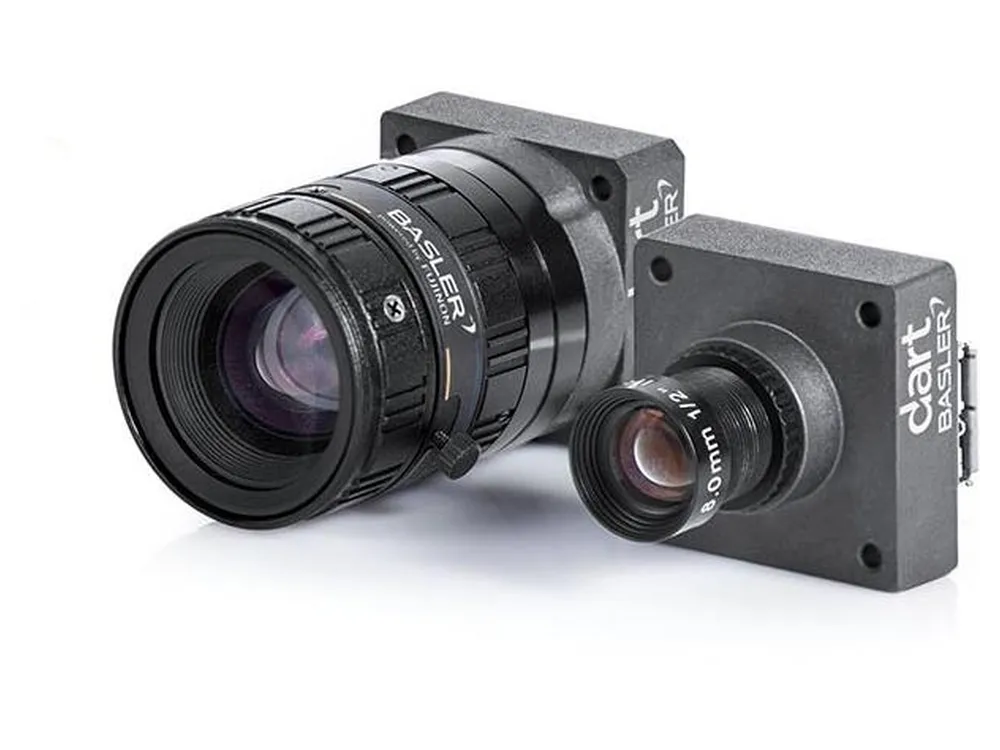

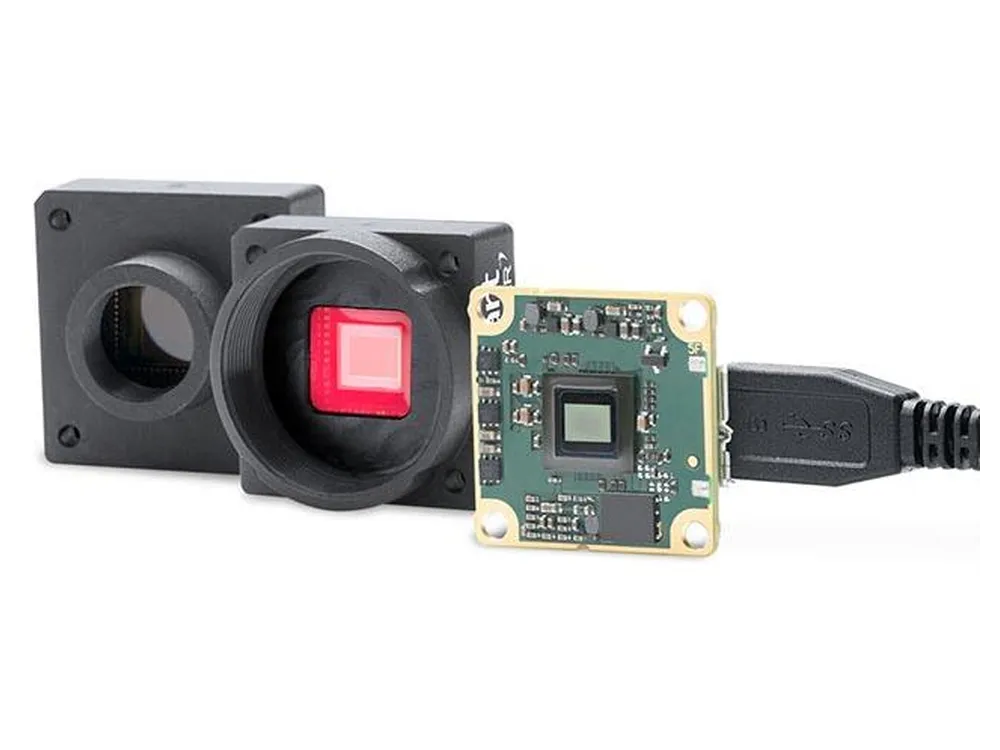

Basler dart R daA1440-220uc (CS-Mount)
- IMX273 Sensor
- 227 fps Frame rate
- USB 3.0 Interface
- 1.6 MP Resolution (MP)
- 1/2.9" Sensor Format
The Basler daA1440-220uc (CS-Mount) USB 3.0 camera with the Sony IMX273 CMOS sensor delivers 227 frames per second at 1.6 MP resolution. This model has a CS-mount.
General Information
| Order Number | 108733 |
|---|---|
| Product Family | dart R |
| Camera Category | Area Scan Camera |
Sensor
| Sensor Vendor | Sony |
|---|---|
| Sensor | IMX273 |
| Shutter | Global Shutter |
| Sensor Format | 1/2.9" |
| Sensor Type | CMOS |
| Sensor Size | 5 mm × 3.7 mm |
| Resolution (H x V) | 1440 px × 1080 px |
| Resolution (MP) | 1.6 MP |
| Pixel Size (H x V) | 3.45 μm × 3.45 μm |
| Frame rate | 227 fpsCalculate individual frame rate |
| Mono/Color | Color |
| Spectrum | Visible |
Camera Data
| Interface | USB 3.0 |
|---|---|
| Image Data Interface | USB 3.0, nominal max. 5 Gbit/s (SuperSpeed) |
| Pixel Bit Depth |
|
| Digital Input | 0 |
| Digital Output | 0 |
| General Purpose I/O | 4 |
Housing
| Housing Type | Board Level |
|---|---|
| Housing Size (L x W x H) | 19.9 mm x 29.3 mm x 29 mm |
| Weight | 15 g |
| Lens Mount | CS-mount |
| Operating Temperature | 0 °C - 50 °C |
Manufacturer
| Basler |
|---|
Conformity
- CE (incl. RoHS)
- EAC
- GenICam
- KC
- RoHS
- UKCA
- UL
- USB3 Vision
Features & Documentation
For more information about the features, visit the Documentation
