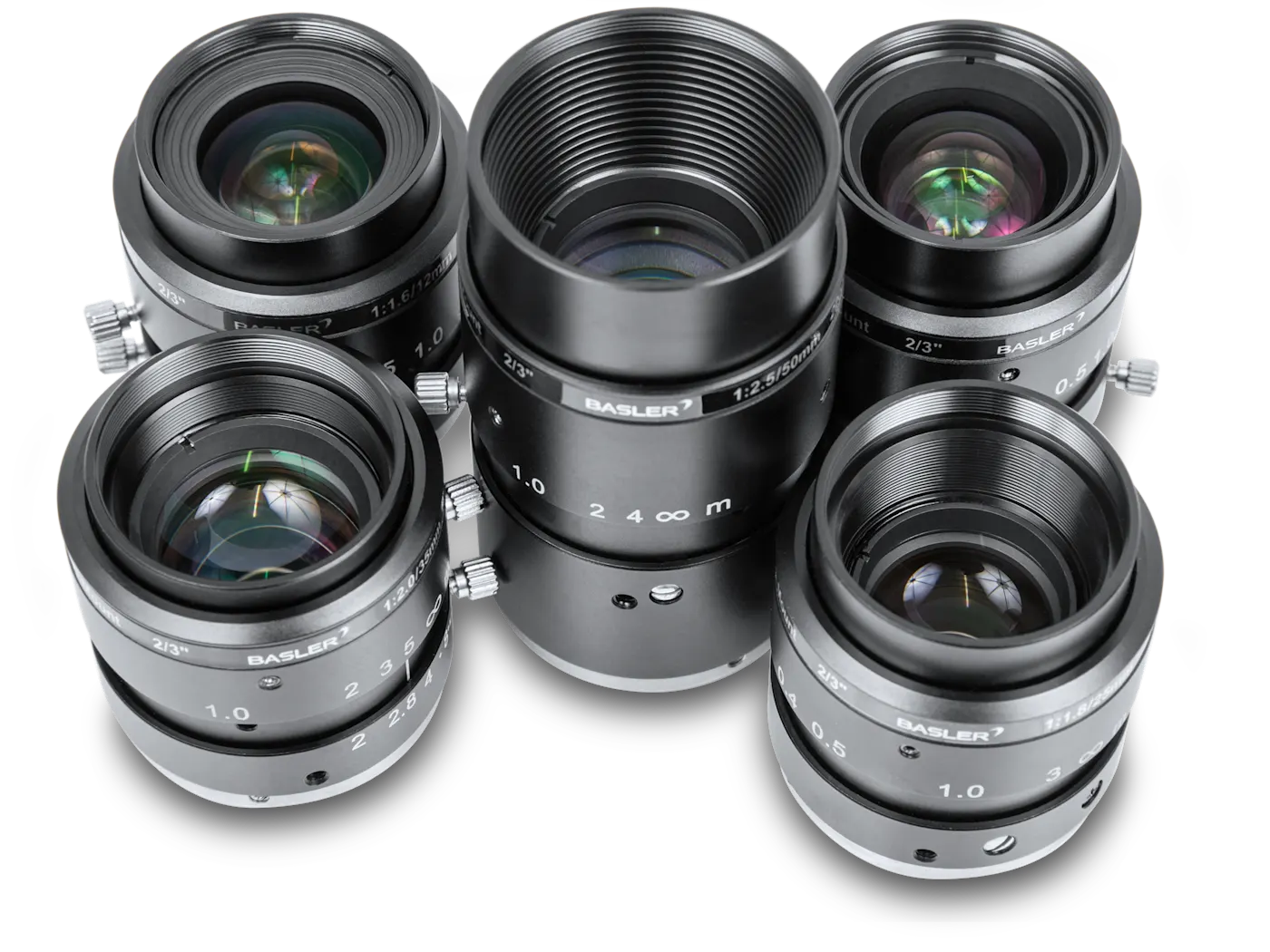

![2/3" C-mount lenses](http://images-ctf.baslerweb.com/dg51pdwahxgw/yAlPbswHT0pkOivQI7ZaR/7f25fd82e1fc4a0340ea5a30146dc7e0/basler-c-mount-lenses-portfolio.webp?fm=webp&f=top_left&w=800&q=80&fit=pad)

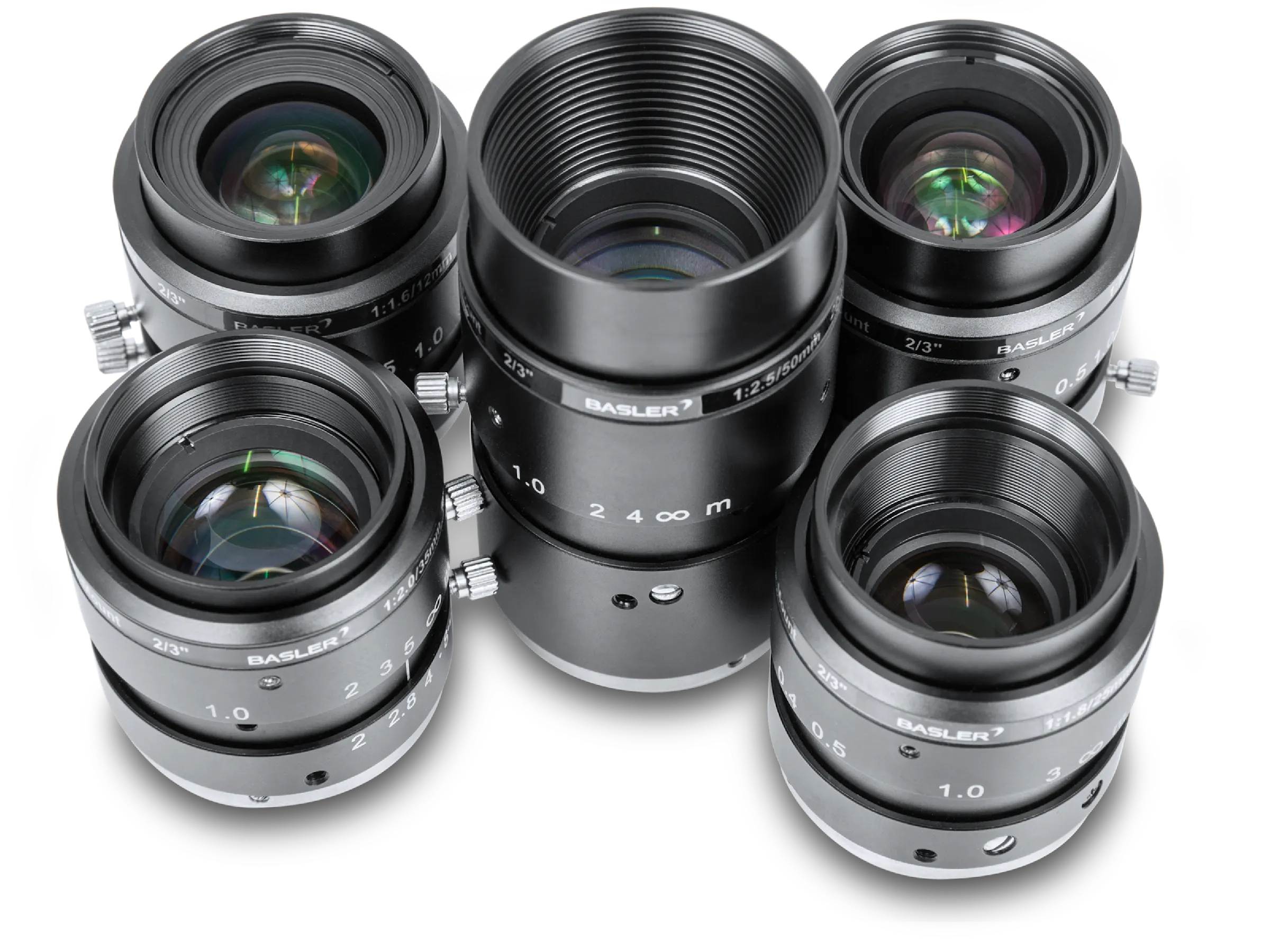

C-mount Lenses
For sensor sizes up to 1.5 inches
![](http://images-ctf.baslerweb.com/dg51pdwahxgw/017bqmXPb5Tio1qd0eGzDd/861a3a491e75a1311a89d1a1c37333a6/c-mount-lenses-portfolio.webp?fm=webp&f=top_left&w=800&h=450&q=80&fit=pad)

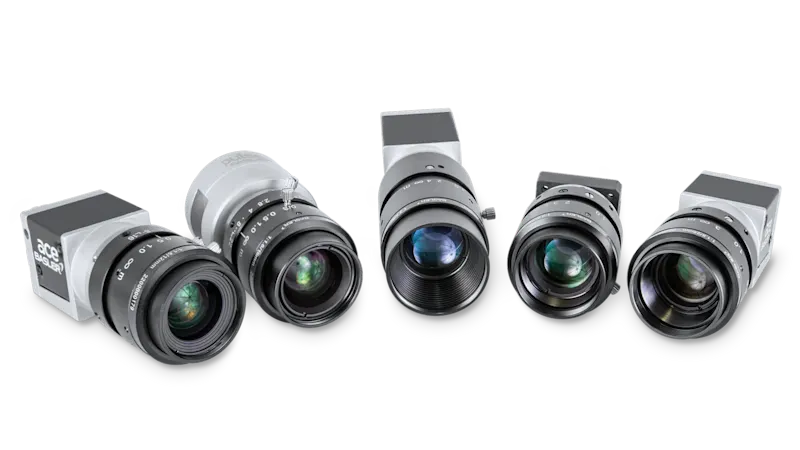

All about C-mount lenses
In order to connect a lens to a camera, we need a threaded connection—the mount. Mount sizes are standardized and are indicated by letters, with the C-mount being the most common type used for machine vision cameras. It is used for sensor diagonals measuring up to 20 mm, or 1.5 inches. The thread has a nominal diameter of 1 inch (24.5 mm) and a pitch of 1/32 inches. The flange focal distance of this lens mount is 17.526 mm (0.69 inch).
![](http://images-ctf.baslerweb.com/dg51pdwahxgw/6dMMZ98GtD1Z21TMsCZ286/e8cf6a5d281f66848f167953af318518/LensAdapter_Ring_1380x735px.jpg?fm=webp&f=center&w=800&h=450&q=80&fit=pad)

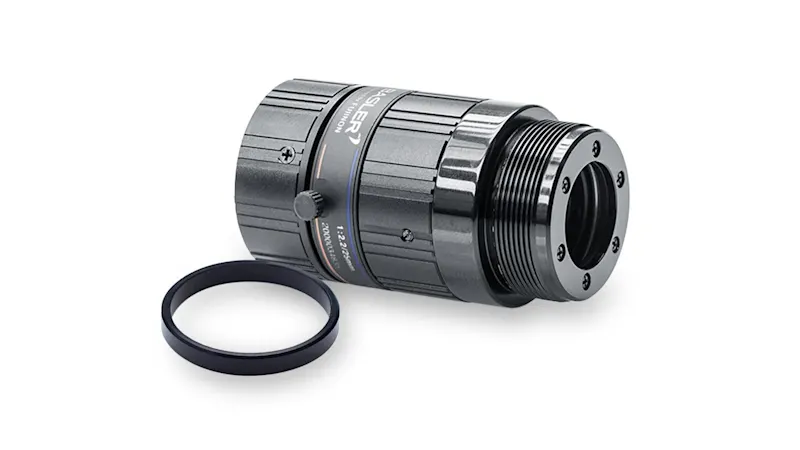

Adapter rings expand application areas
Adapter rings can allow you to connect C-mount lenses to CS-mount cameras, broadening the application reach of the equipment. Note that CS-mount lenses cannot be connected to C-mount cameras due to the shorter flange focal distance.
Discover Basler's lens portfolio
Explore our complete lens portfolioto find the right optics for your camera and application.
More information on C-Mount Lenses
Learn more about our products and applications. Our comprehensive materials provide you with all the important details.
