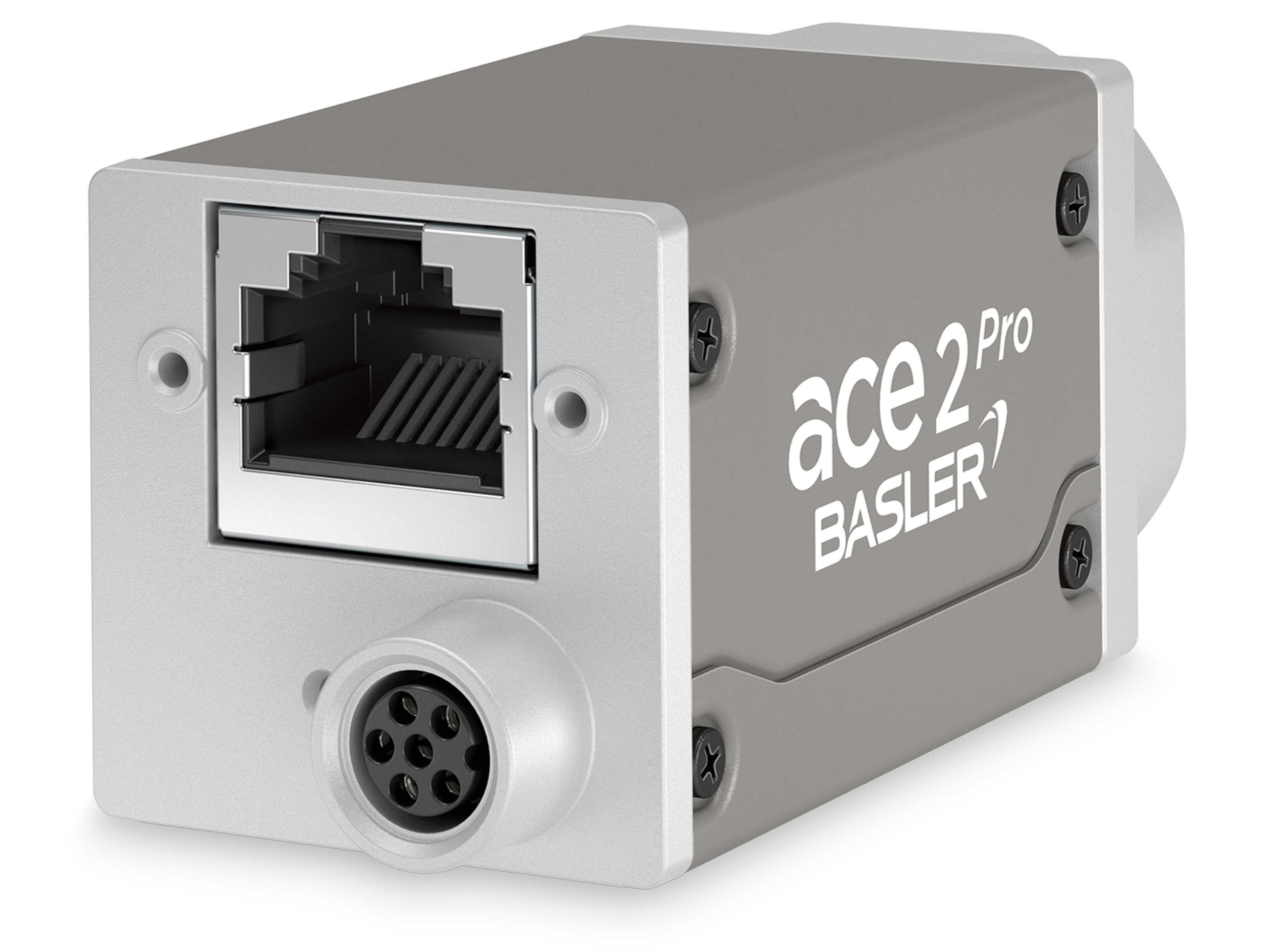

Basler ace 2 R a2A2590-22gmPRO
- IMX334ROI Sensor
- 22 fps Frame rate
- GigE Interface
- up to 60 fps Frame Rate Compression Beyond
- 5 MP Resolution (MP)
- 1/2.8" Sensor Format
The Basler a2A2590-22gmPRO GigE camera with the Sony IMX334 ROI CMOS sensor delivers 22 frames per second at 5.1 MP resolution.
Select your model
General Information
| Order Number | 108131 |
|---|---|
| Product Family | ace 2 R |
| Product Line | ace 2 R Pro |
| Camera Category | Area Scan Camera |
Sensor
| Sensor Vendor | Sony |
|---|---|
| Sensor | IMX334ROI |
| Shutter | Rolling Shutter |
| Sensor Format | 1/2.8" |
| Sensor Diagonal | 6.5 mm |
| Sensor Type | CMOS |
| Sensor Size | 5.2 mm × 3.9 mm |
| Resolution (H x V) | 2592 px × 1944 px |
| Resolution (MP) | 5 MP |
| Pixel Size (H x V) | 2 μm × 2 μm |
| Frame rate | 22 fpsCalculate individual frame rate |
| Frame Rate Compression Beyond | up to 60 fps |
| Mono/Color | Mono |
| Spectrum | Visible |
EMVA Data
| Quantum Efficiency (typical/minimal) | 72.9 % (typical) |
|---|---|
| Dark Noise (typical/maximal) | 1.96 e¯ (typical) |
| Saturation Capacity (typical/minimal) | 7.2 ke¯ (typical) |
| Dynamic Range (typical/minimal) | 69.2 dB (typical) |
| Signal-to-Noise Ratio (typical/minimal) | 38.6 dB (typical) |
Camera Data
| Interface | GigE |
|---|---|
| Image Data Interface | Fast Ethernet (100 Mbit/s), Gigabit Ethernet (1000 Mbit/s) |
| Pixel Bit Depth |
|
| Exposure Control |
|
| Digital Input | 1 |
| General Purpose I/O | 2 |
| Power Supply | PoE or 12-24 VDC |
| Power Requirements (typical) | 2.7 W |
Housing
| Housing Type | Box |
|---|---|
| Housing Size (L x W x H) | 55.5 mm x 29 mm x 29 mm |
| Weight | 105 g |
| Lens Mount | C-mount |
| Operating Temperature | -10 °C - 50 °C |
Technical Drawing
Manufacturer
| Basler |
|---|
Conformity
- CE (incl. RoHS)
- EAC
- FCC
- GenICam
- GigE Vision 2.0
- IP30
- KC
- RoHS
- UKCA
- UL
Features & Documentation
For more information about the features, visit the Documentation
