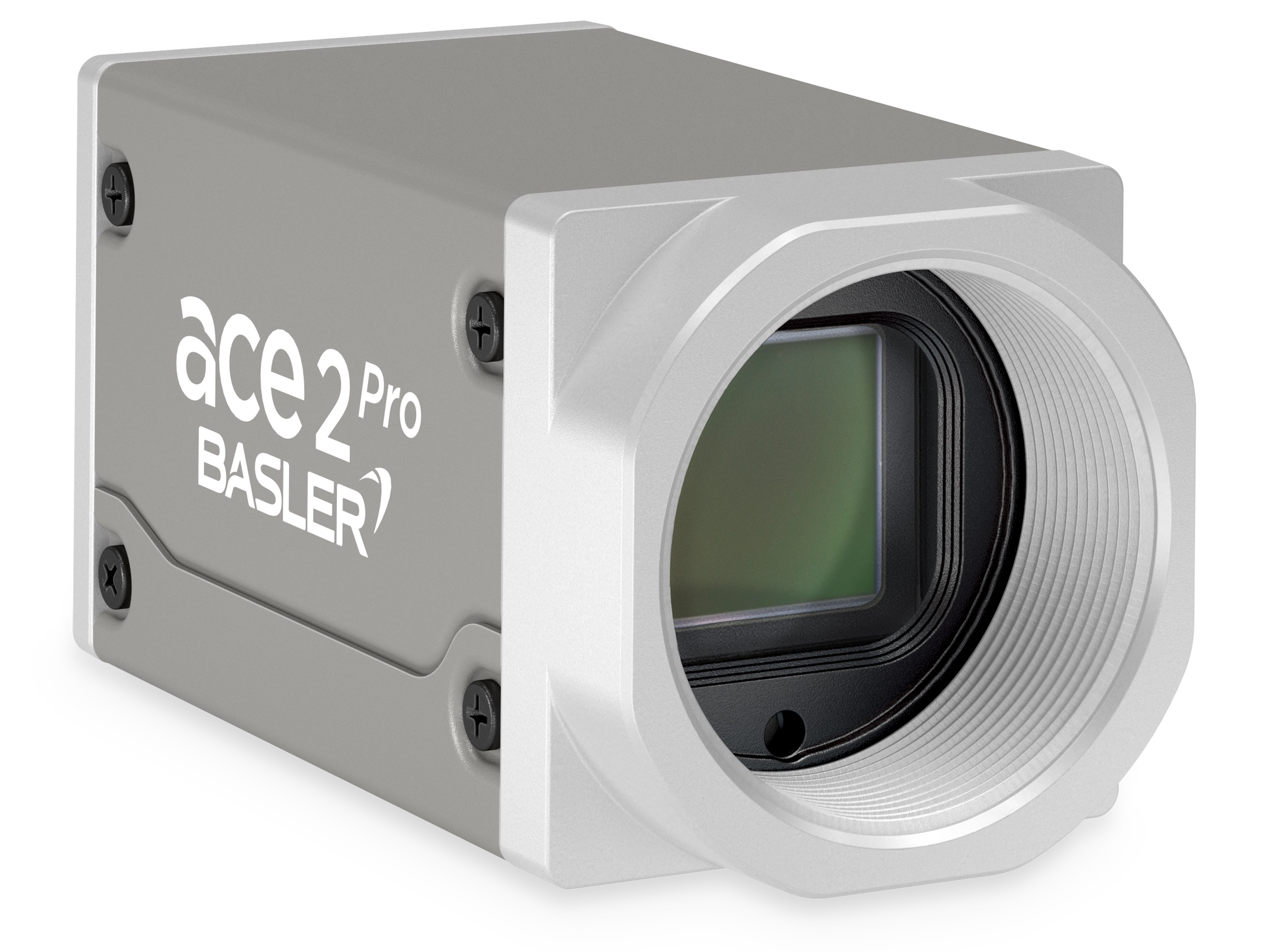

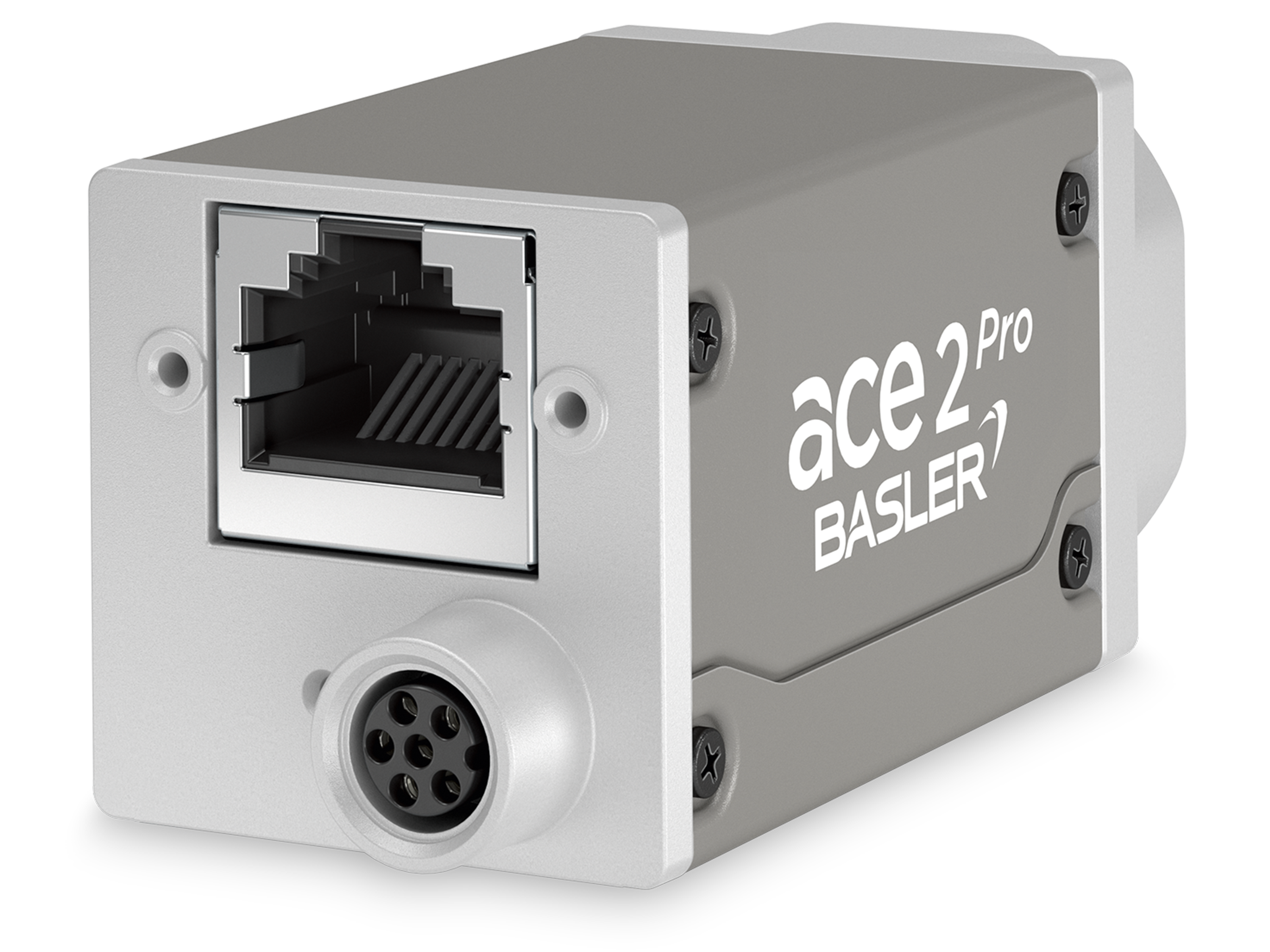

Basler ace 2 R a2A4508-6gmPRO
- GMAX2518 Sensor
- 6 fps Frame rate
- GigE Interface
- 18.4 MP Resolution (MP)
- 1" Sensor Format
The Basler a2A4508-6gmPRO GigE camera with the Gpixel GMAX2518 CMOS sensor delivers 6 frames per second at 18.4 MP resolution.
Select your model
General Information
| Order Number | 108454 |
|---|---|
| Product Family | ace 2 R |
| Product Line | ace 2 R Pro |
| Camera Category | Area Scan Camera |
Sensor
| Sensor Vendor | Gpixel |
|---|---|
| Sensor | GMAX2518 |
| Shutter | Global Shutter |
| Sensor Format | 1" |
| Sensor Diagonal | 15.2 mm |
| Sensor Type | CMOS |
| Sensor Size | 11.27 mm × 10.24 mm |
| Resolution (H x V) | 4508 px × 4096 px |
| Resolution (MP) | 18.4 MP |
| Pixel Size (H x V) | 2.5 μm × 2.5 μm |
| Frame rate | 6 fpsCalculate individual frame rate |
| Mono/Color | Mono |
| Spectrum | Visible |
EMVA Data
| Quantum Efficiency (typical/minimal) | 56.4 % (typical) |
|---|---|
| Dark Noise (typical/maximal) | 3 e¯ (typical) |
| Saturation Capacity (typical/minimal) | 6.7 ke¯ (typical) |
| Dynamic Range (typical/minimal) | 65.5 dB (typical) |
| Signal-to-Noise Ratio (typical/minimal) | 38.3 dB (typical) |
Camera Data
| Interface | GigE |
|---|---|
| Image Data Interface | Fast Ethernet (100 Mbit/s), Gigabit Ethernet (1000 Mbit/s) |
| Pixel Bit Depth |
|
| Exposure Control |
|
| Digital Input | 1 |
| General Purpose I/O | 2 |
| Power Supply | Via USB 3.0 interface or 12-24 VDC |
| Power Requirements (typical) | 3.7 W |
Housing
| Housing Type | Box |
|---|---|
| Housing Size (L x W x H) | 42.8 mm x 29 mm x 29 mm |
| Weight | 90 g |
| Lens Mount | C-mount |
| Operating Temperature | -10 °C - 50 °C |
Technical Drawing
Manufacturer
| Basler |
|---|
Conformity
- CE (incl. RoHS)
- EAC
- FCC
- GenICam
- GigE Vision 2.0
- IP30
- KC
- RoHS
- UKCA
- UL
Features & Documentation
For more information about the features, visit the Documentation
