Basler boost R boA5320-150cc

Name: boA5320-150cc
SKU: 108381
Price: 3239 USD
Availability: InStock

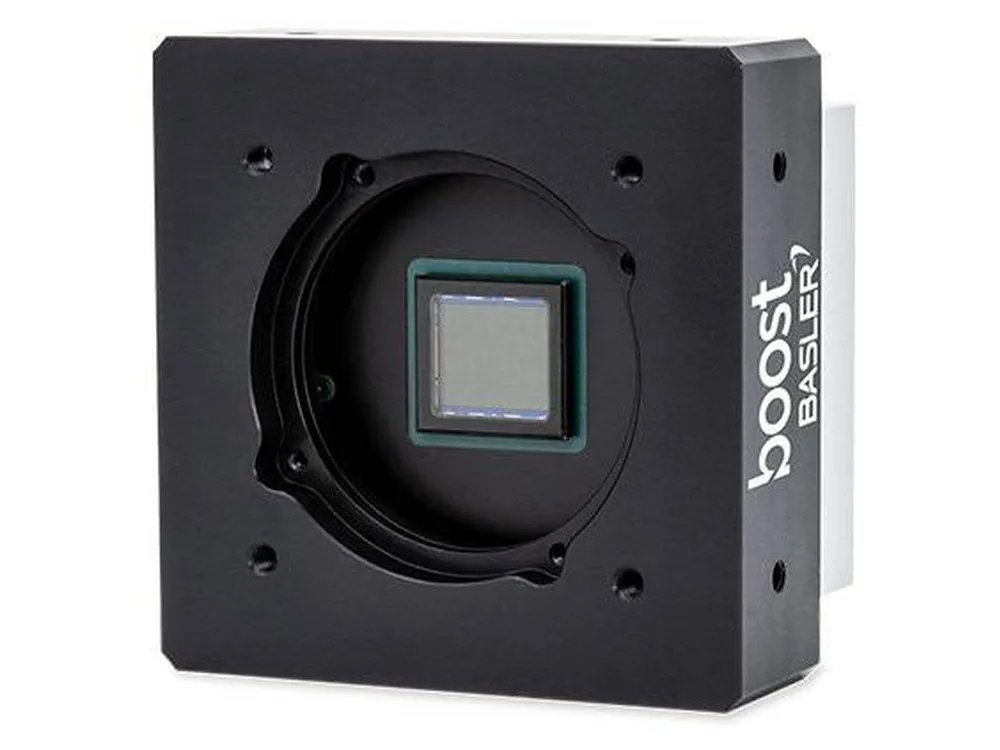

The Basler CoaXPress 2.0 boA5320-150cc camera with the Sony IMX532 CMOS sensor delivers 150 frames per second with a 16 MP resolution.

Quantity

Suitable Products

pylon vTools for image processing
Design robust image processing software for quality assurance and tracking. Functions such as blob analysis, matching, and code reader can be combined using drag-and-drop design and flexibly integrated into the target application.
pylon Software for image acquisition
pylon offers certified drivers for many camera interfaces, as well as simple programming interfaces and practical tools for camera setup.

Net list price	$3,239.00
Shipping	Standardapprox. 3 weeks

Sensor Vendor	Sony
Sensor	IMX532
Shutter	Global Shutter
Sensor Format	1.1"
Sensor Type	CMOS
Sensor Size	14.6 mm × 8.3 mm
Resolution (H x V)	5320 px × 3032 px
Resolution (MP)	16.1 MP
Pixel Size (H x V)	2.74 μm × 2.74 μm
Frame rate	150 fpsCalculate individual frame rate
Mono/Color	Color
Spectrum	Visible

Balance White (Manual White Balance)
Balance White Auto (Automatic White Balance)
Brightness and Contrast
Color Adjustment (6-axis Hue/Saturation)
Color Transformation
Demosaicing Mode
Hue and Saturation

Acquisition Frame Rate
Acquisition Mode
Acquisition Start, Stop, and Abort
Acquisition Status
Exposure Active Trigger
Exposure End Trigger
Exposure Start Delay
Exposure Start Trigger
Frame Active Trigger
Frame Burst Active Trigger
Frame Burst End Trigger
Frame Burst Start Trigger
Frame End Trigger
Frame Start Trigger
High Speed Burst Mode
Sensor Readout Time
Triggered Image Acquisition

Defect Pixel Correction
Device Information Parameters
Device Temperature
Sensor Bit Depth
Sensor State
Temperature State
Transfer Bit Depth
User Sets (Configuration Sets)
User-Defined Values
Vignetting Correction

Auto Function Profile
Black Level
Center X and Center Y
Counter
Digital Shift
Exposure Auto
Exposure Mode: Timed
Exposure Mode: Trigger Controlled
Exposure Mode: Trigger Width
Exposure Time
Gain
Gain Auto
Gamma Correction
Image ROI (Region of Interest)
Lookup Table (LUT)
Multiple ROI
Reverse X (Horizontal Mirroring)
Reverse Y (Vertical Mirroring)
Sequencer (ace 2 and boost R)
Test Patterns
Timer
Ultra Short Exposure Time Mode
