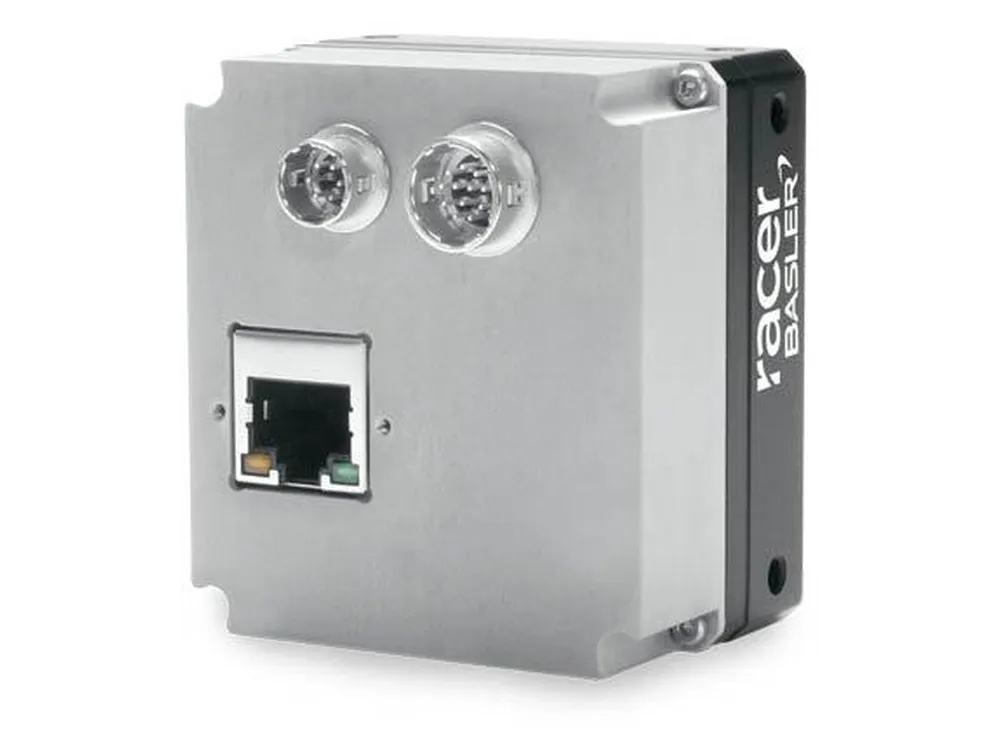

Basler racer raL4096-24gm

DR-4k-7 Sensor
GigE Interface
4 k Resolution (k)
26 kHz Line Rate

The Basler racer raL4096-24gm GigE camera with the Awaiba DR-4k-7 CMOS sensor delivers 26 kHz at 4k resolution.

If you wish to attach a lens to the camera, you must order a lens mount adapter separately as an accessory. A lens mount adapter is not provided with the camera.

Quantity

Net list price	$1,629.00
Shipping	Standardapprox. 4 weeks

Order Number	105994
Camera Category	Line Scan Camera

Sensor Vendor	Awaiba
Sensor	DR-4k-7
Shutter	Global Shutter
Sensor Type	CMOS
Resolution (H x V)	4096 px × 1 px
Resolution (k)	4 k
Pixel Size (H x V)	7 μm × 7 μm
Line Rate	26 kHz
Mono/Color	Mono
Spectrum	Visible

Interface	GigE
Pixel Bit Depth	8 bits 12 bits
Synchronization	free-run hardware trigger software trigger
Exposure Control	trigger width or timed
Digital Input	3
Digital Output	2
Power Supply	12-24 VDC

Quantum Efficiency (typical/minimal)	42.67 % (typical)
Dark Noise (typical/maximal)	8.6 e¯ (typical)
Saturation Capacity (typical/minimal)	25.1 ke¯ (typical)
Dynamic Range (typical/minimal)	69.2 dB (typical)
Signal-to-Noise Ratio (typical/minimal)	44 dB (typical)

Basler racer raL4096-24gm

General Information

Sensor

Camera Data

EMVA Data

Housing

Manufacturer

Conformity

Documentation

Features & Documentation

Chunks

I/O Control

Miscellaneous

Pixel Formats

Standard Features

Suitable Products

Housing Type	Box
Housing Size (L x W x H)	36 mm x 56 mm x 62 mm
Weight	240 g
Lens Mount	C-mount F-mount M42 x 0.75 M42 x 1 M58 x 0.75
Operating Temperature	0 °C - 50 °C
