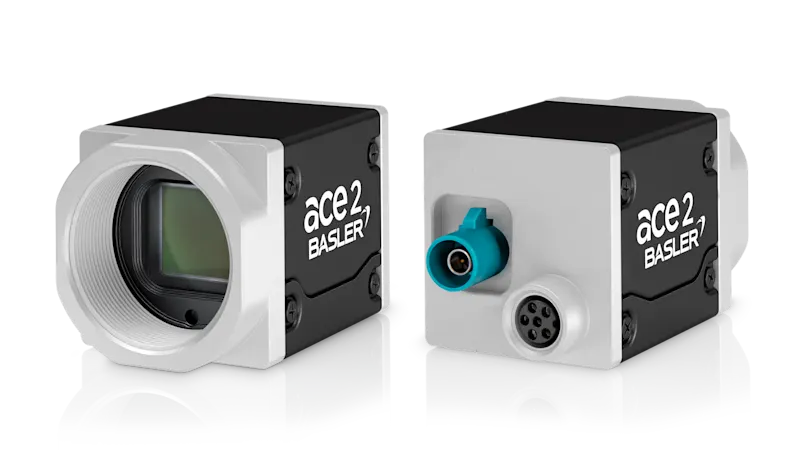

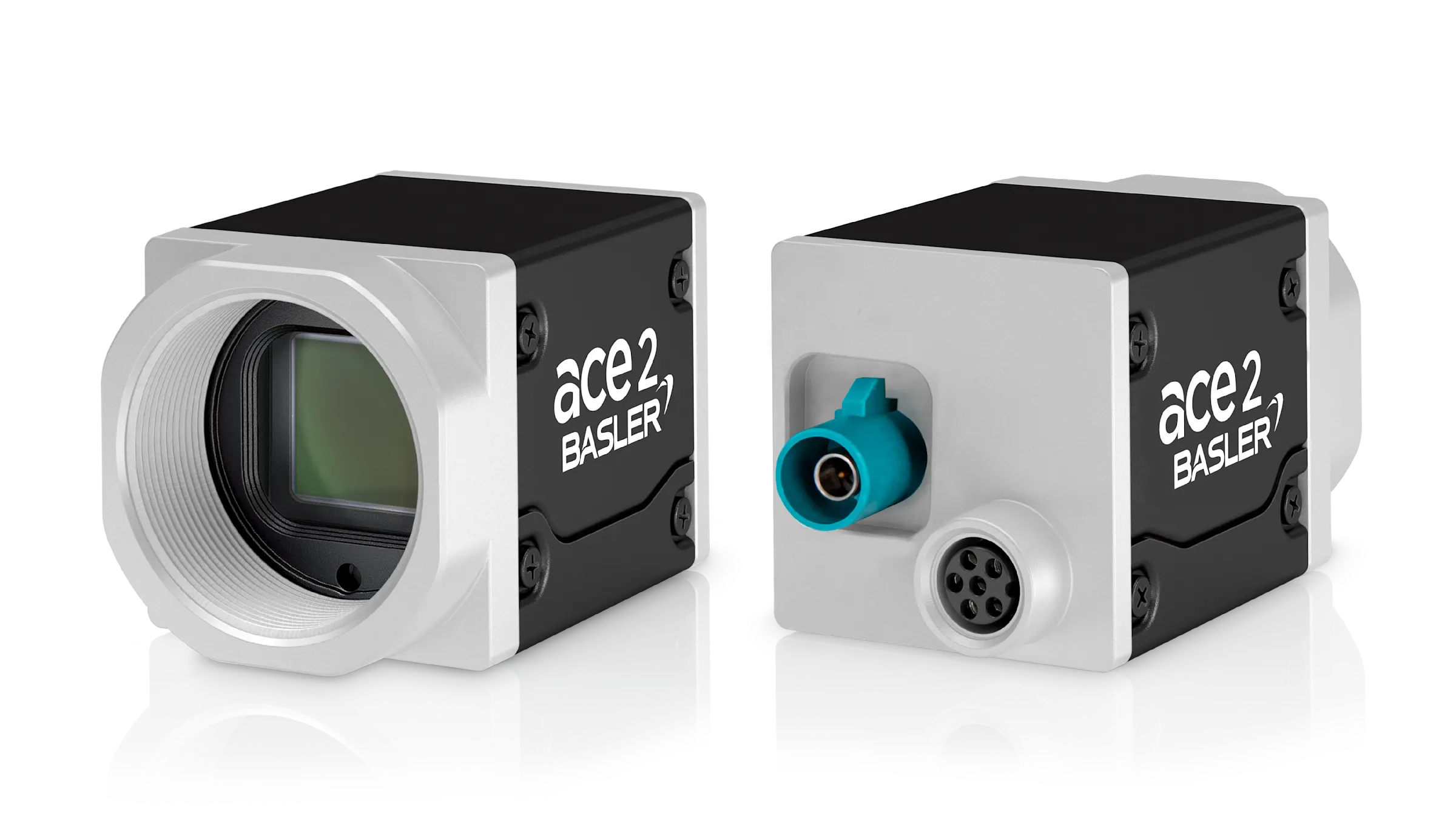

ace 2 Cameras with GMSL Interface
Our new GMSL cameras use GMSL as the standard camera interface. This makes them much easier to integrate into applications and enables faster commissioning of embedded systems.
Minimal effort with embedded processors
All necessary software packages providedHigh Bandwidth and cable length
Up to 12 Gbps over 15 m of coaxial cableEasy handling
One cable for video, configuration, GPIO, and powerAll ace 2 cameras can be provided

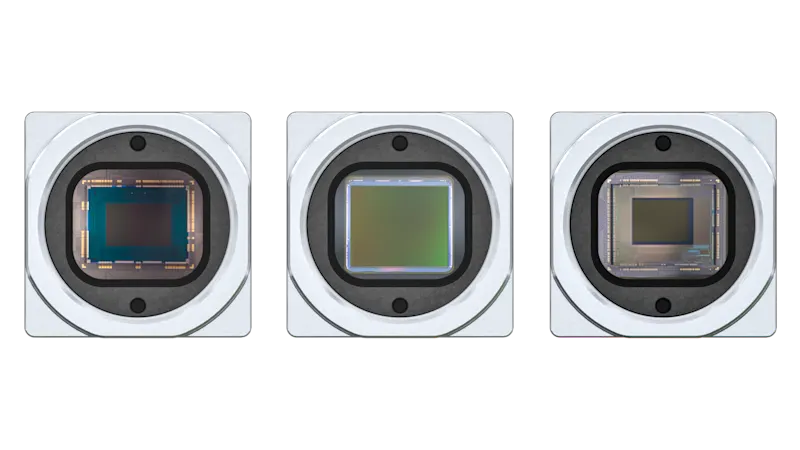

All available ace 2 sensors supported
Our GMSL camera for fast embedded vision systems
GMSL (Gigabit Multimedia Serial Link) is a high-speed serial interface and the latest addition to our ace 2 camera platform.
Embedded camera for various host systems
The ace 2 GMSL is supplied with ISP and firmware on board and is therefore independent of the capabilities of the host processor. Any processor with MIPI CSI ports can be supported.

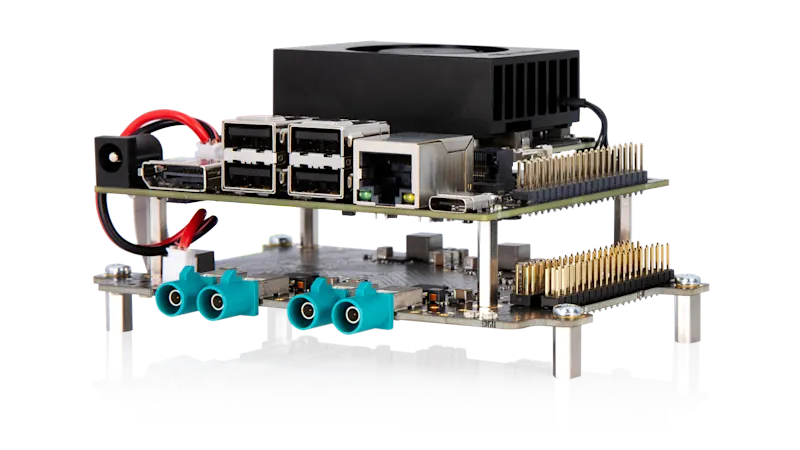

Initially, the NVIDIA® Jetson™ Orin processors are supported, but other processor lines can be integrated on request. You can request a GMSL frame grabber for use with PCs along with the camera.
Easy set-up for fast commissioning
By integrating and providing all the necessary software packages, the Basler ace 2 with GMSL interface can be integrated with minimum effort
Seamless integration into the NVIDIA® software ecosystem thanks to Basler pylon SDK
Sample code for AI, NVIDIA CUDA®, image compression, and remote viewing
Design guide for designing your own carrier board on request
Long cable length and reliable interface
The GMSL interface offers high speeds and bandwidths of up to 12 Gbps with cable lengths of up to 15 metres. This makes it well suited for real-time applications, and it also delivers impressive performance:
One cable for power, video, configuration, and trigger
Low latency and CPU load
Low error rate / forward error correction
Customised systems for every application
The ace 2 with GMSL interface is available as a customised camera with any sensor from the ace 2 camera series. The full range of ace 2 accessories is also available for the GMSL models. This means that coordinated systems can be set up quickly and easily.

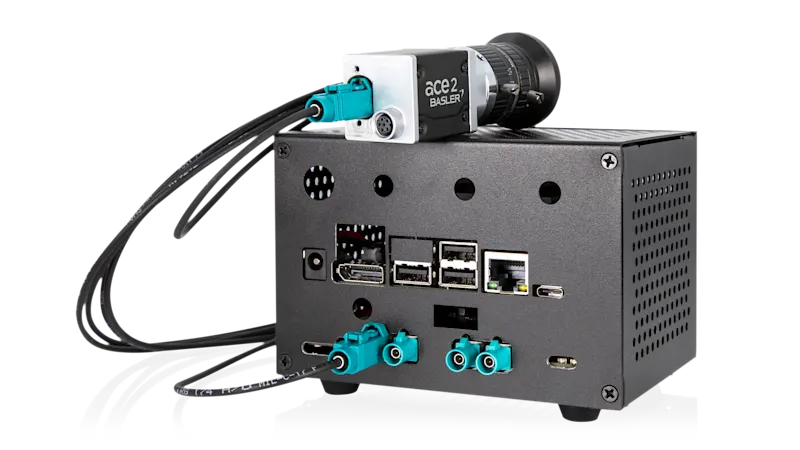

The Basler ace 2 GMSL camera is also suitable for mixed camera systems with GMSL, GigE, and USB.
Multiple use cases
ace 2 cameras with GMSL interface can be used in all kinds of demanding vision applications, such as:
