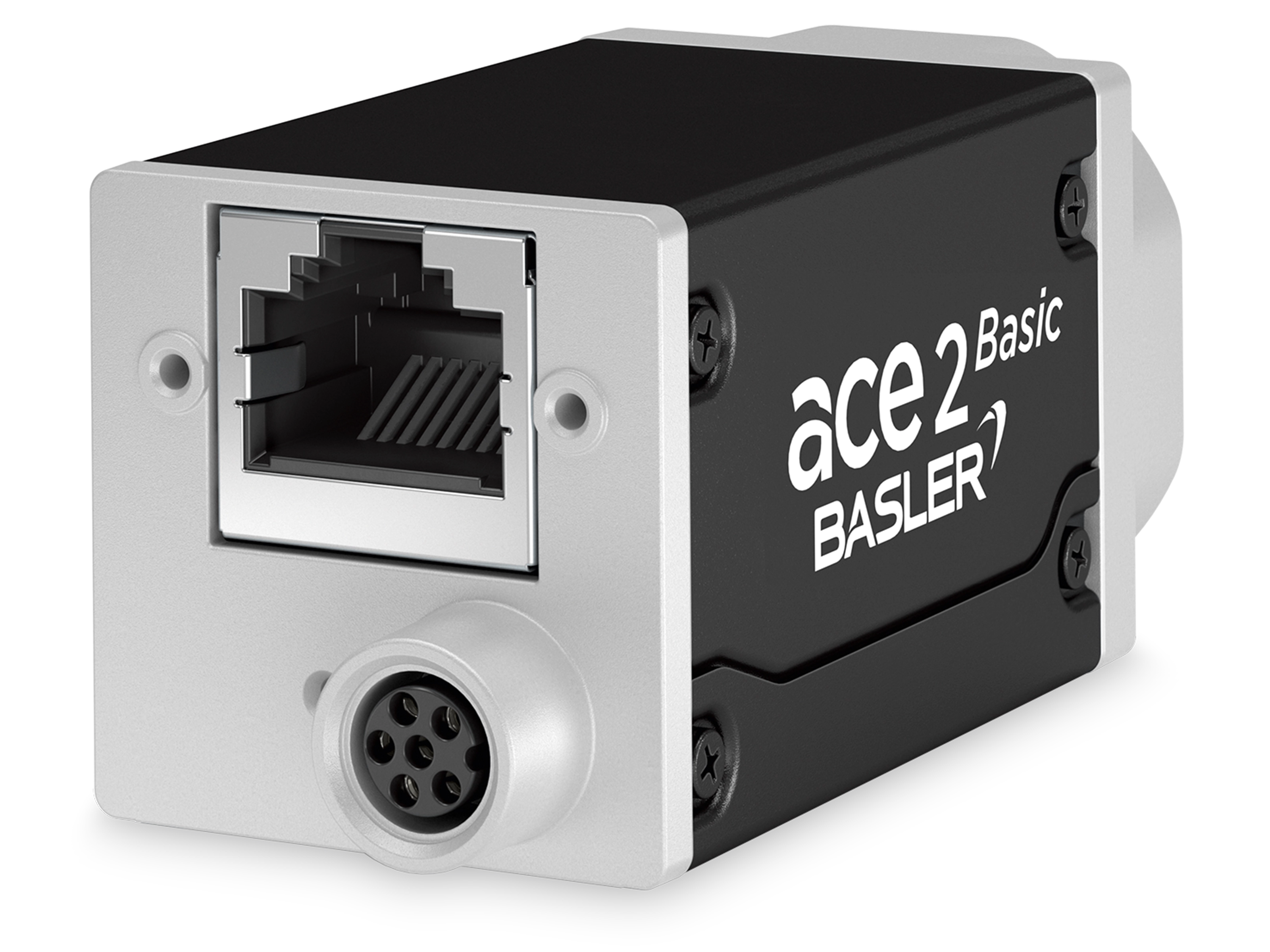

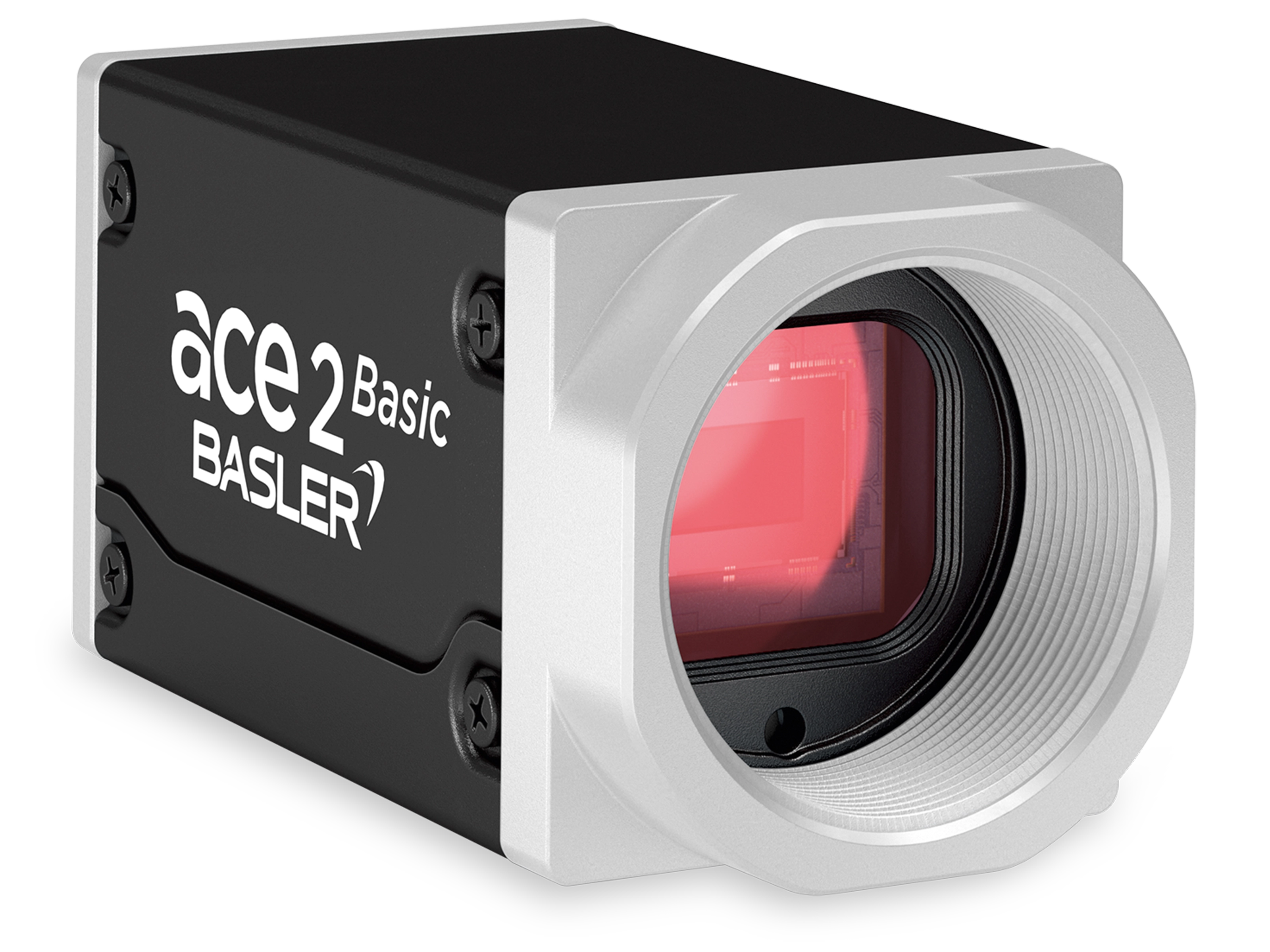

Basler ace 2 R a2A3536-42g5cBAS

IMX676 Sensor
42 fps Frame rate
5GigE Interface
12.5 MP Resolution (MP)
1/1.6 Sensor Format

The Basler a2A3536-42g5cBAS 5GigE camera with the Sony IMX676 CMOS sensor delivers 42 frames per second at 12.5 MP resolution.

Select your model

Select Product Line:

ace 2 R Basic
ace 2 R Pro

Select Interface:

5GigE
GigE
USB 3.0

Select Mono/Color:

Mono
Color

Net list price	€569.00
Delivery time	Standardapprox. 2 weeks

Quantity

Add this product to my vision system

Show suitable products

General Information

Order Number	109497
Product Family	ace 2 R
Product Line	ace 2 R Basic
Camera Category	Area Scan Camera

Sensor

Sensor Vendor	Sony
Sensor	IMX676
Shutter	Rolling Shutter
Sensor Format	1/1.6
Sensor Diagonal	10 mm
Sensor Type	CMOS
Sensor Size	7.1 mm × 7.1 mm
Resolution (H x V)	3536 px × 3536 px
Resolution (MP)	12.5 MP
Pixel Size (H x V)	2 μm × 2 μm
Frame rate	42 fpsCalculate individual frame rate
Mono/Color	Color
Spectrum	Visible

Camera Data

Interface	5GigE
Image Data Interface	Fast Ethernet (100 Mbit/s), Gigabit Ethernet (1000 Mbit/s), 2.5 Gigabit Ethernet (2500 Mbit/s), 5 Gigabit Ethernet (5000 Mbit/s)
Pixel Bit Depth	10 bits 12 bits
Exposure Control	hardware trigger programmable via the camera API
Digital Input	1
General Purpose I/O	2
Power Supply	12-24 VDC
Power Requirements (typical)	5.8 W

Housing

Housing Type	Box
Housing Size (L x W x H)	55.5 mm x 29 mm x 29 mm
Weight	100 g
Lens Mount	C-mount
Operating Temperature	-10 °C - 50 °C

Technical Drawing

Manufacturer

Basler

Conformity

CE (incl. RoHS)
EAC
FCC
GenICam
GigE Vision 2.0
IP30
RoHS
UL

Documentation

More specifications can be found in the Documentation

High sensitivity and low noise for low-light & NIR applications

The IMX676 sensor of the Sony STARVIS 2 series is characterized by its high sensitivity – even in the near-infrared (NIR) range – and a high signal-to-noise ratio. This combined with the cheaper rolling shutter sensor technology allows cameras with the IMX676 to offer many benefits for low-light, NIR, and price-sensitive applications.

QE curves of the IMX676 (light blue), IMX226 (dark blue), and CMV4000NIR sensors (grey)

Quantum efficiency in comparison

The graph shows the quantum efficiency (QE) of three sensors.

IMX676: Rolling shutter sensor, 12.5 MP resolution, pixel size of 2 μm², latest Sony STARVIS 2 series
IMX226: Rolling shutter sensor, 12.2 MP resolution, pixel size of 1.85 μm², Sony STARVIS series, available for over 10 years
CMV4000NIR: NIR-optimized global shutter sensor, 4 MP resolution, pixel size of 5.5 μm², available for over 10 years

Both the QE curves and the table below of selected QE data prove the high sensitivity of the IMX676 sensor in both the visible and NIR range compared to the established sensors.

	IMX676	IMX226	CMV4000NIR
Technology	Sony STARVIS 2	Sony STARVIS	NIR-optimized
QE @ 540 nm	92 %	80 %	62 %
QE @ 850 nm	~ 45 %	~ 19 %	~ 35 %
QE @ 950 nm	~ 20 %	~ 9 %	~ 11 %

The image comparison shows the high image quality of the IMX676 sensor at 850 nm.

High image quality at 850 nm

This image comparison demonstrates the high image quality of the IMX676 sensor in the NIR range. Two images with negative film in the left part of the image (outlined in blue) are shown. Because the negative film is transparent in the NIR range, the scale behind it is clearly visible at 850 nm. The lines of the scale are easily recognizable due to the high NIR sensitivity and the low noise behaviour of the IMX676.

Sony STARVIS 2 sensor technology

The excellent image quality delivered by the IMX676 sensor is due to the ever-evolving sensor technology. The pixel architecture of the Sony STARVIS 2 sensors has been optimized compared with the previous series and convinces with very high sensitivity—even in low light conditions. Further developments continue to improve light absorption in the NIR range, lead to a high signal-to-noise ratio, and extend the dynamic range.

Improved image quality thanks to improved sensor technology
