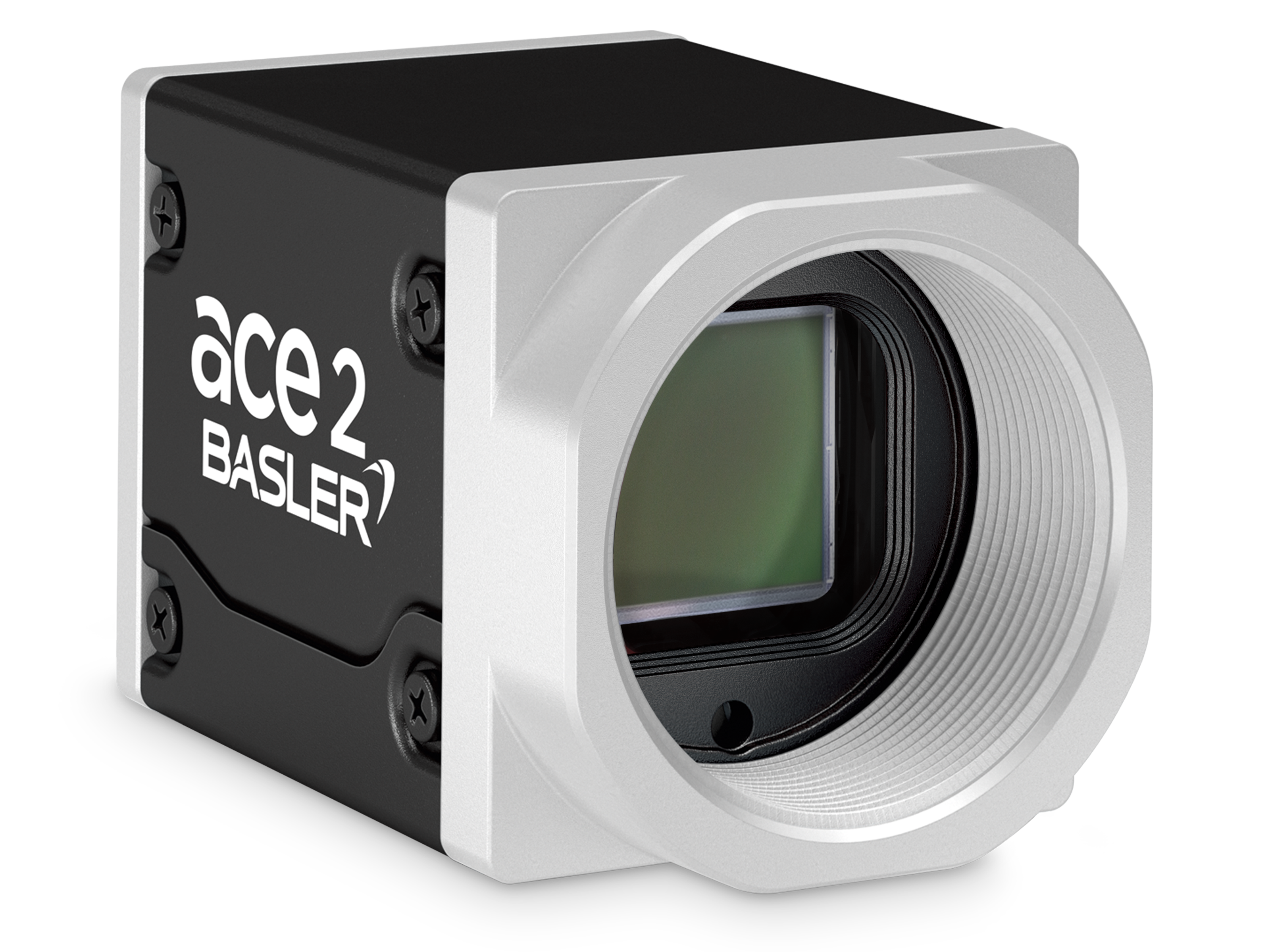

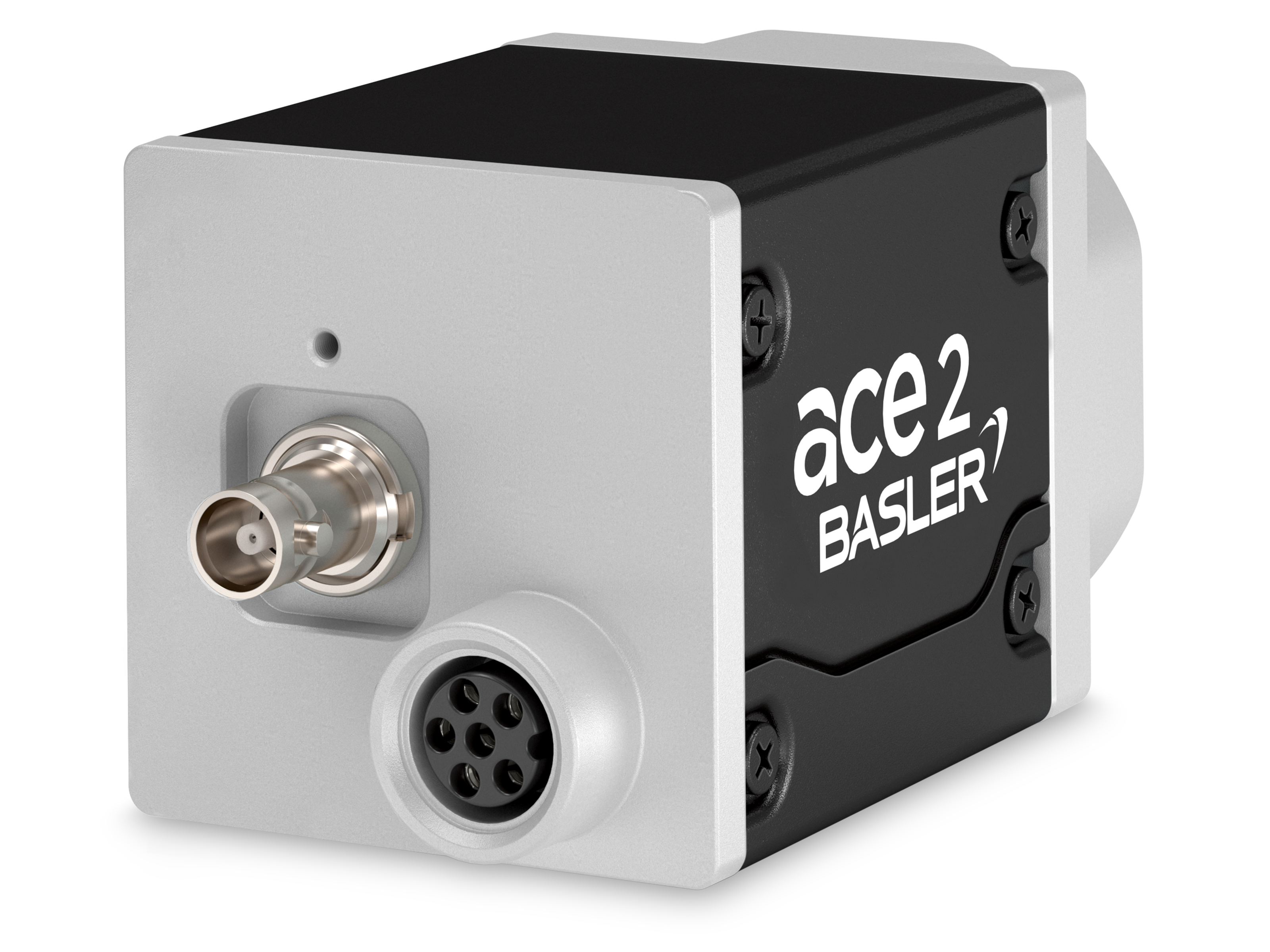

Basler ace 2 V a2A4504-42cm
- IMX541 Sensor
- 42 fps Frame rate
- CoaXPress (CXP-12) Interface
- 20.2 MP Resolution (MP)
- 1.1" Sensor Format
The Basler a2A4504-42cm CXP camera with the Sony IMX541 CMOS sensor delivers 42 frames per second at 20.2 MP resolution.
General Information
| Series Production | now |
|---|---|
| Order Number | 109266 |
| Product Family | ace 2 V |
| Camera Category | Area Scan Camera |
Sensor
| Sensor Vendor | Sony |
|---|---|
| Sensor | IMX541 |
| Shutter | Global Shutter |
| Sensor Format | 1.1" |
| Sensor Diagonal | 17.45 mm |
| Sensor Type | CMOS |
| Sensor Size | 12.34 mm × 12.34 mm |
| Resolution (H x V) | 4504 px × 4504 px |
| Resolution (MP) | 20.2 MP |
| Pixel Size (H x V) | 2.74 μm × 2.74 μm |
| Frame rate | 42 fpsCalculate individual frame rate |
| Mono/Color | Mono |
| Spectrum | Visible |
EMVA Data
| Quantum Efficiency (typical/minimal) | 66.3 % (typical) |
|---|---|
| Dark Noise (typical/maximal) | 2.1 e¯ (typical) |
| Saturation Capacity (typical/minimal) | 9.9 ke¯ (typical) |
| Dynamic Range (typical/minimal) | 71.1 dB (typical) |
| Signal-to-Noise Ratio (typical/minimal) | 39.9 dB (typical) |
Camera Data
| Interface | CoaXPress (CXP-12) |
|---|---|
| Image Data Interface | CoaXPress (2.5–12.5 Gbps) |
| Pixel Bit Depth |
|
| Synchronization |
|
| Exposure Control |
|
| Digital Input | 1 |
| General Purpose I/O | 2 |
| Power Supply | PoCXP |
| Power Requirements (typical) | 3.8 W |
Housing
| Housing Type | Box |
|---|---|
| Housing Size (L x W x H) | 29 mm x 29 mm |
| Weight | 76 g |
| Lens Mount | C-mount |
| Operating Temperature | -10 °C - 50 °C |
Manufacturer
| Basler |
|---|
Conformity
- CE (incl. RoHS)
- CoaXPress 2.0
- EAC
- GenICam
- IP30
- KC
- UKCA
- UL (in preparation)
Features & Documentation
For more information about the features, visit the Documentation
