Basler ace 2 R a2A4504-5gmPRO
- IMX541 Sensor
- 5 fps Frame rate
- GigE Interface
- up to 13 fps Frame Rate Compression Beyond
- 20.2 MP Resolution (MP)
- 1.1" Sensor Format

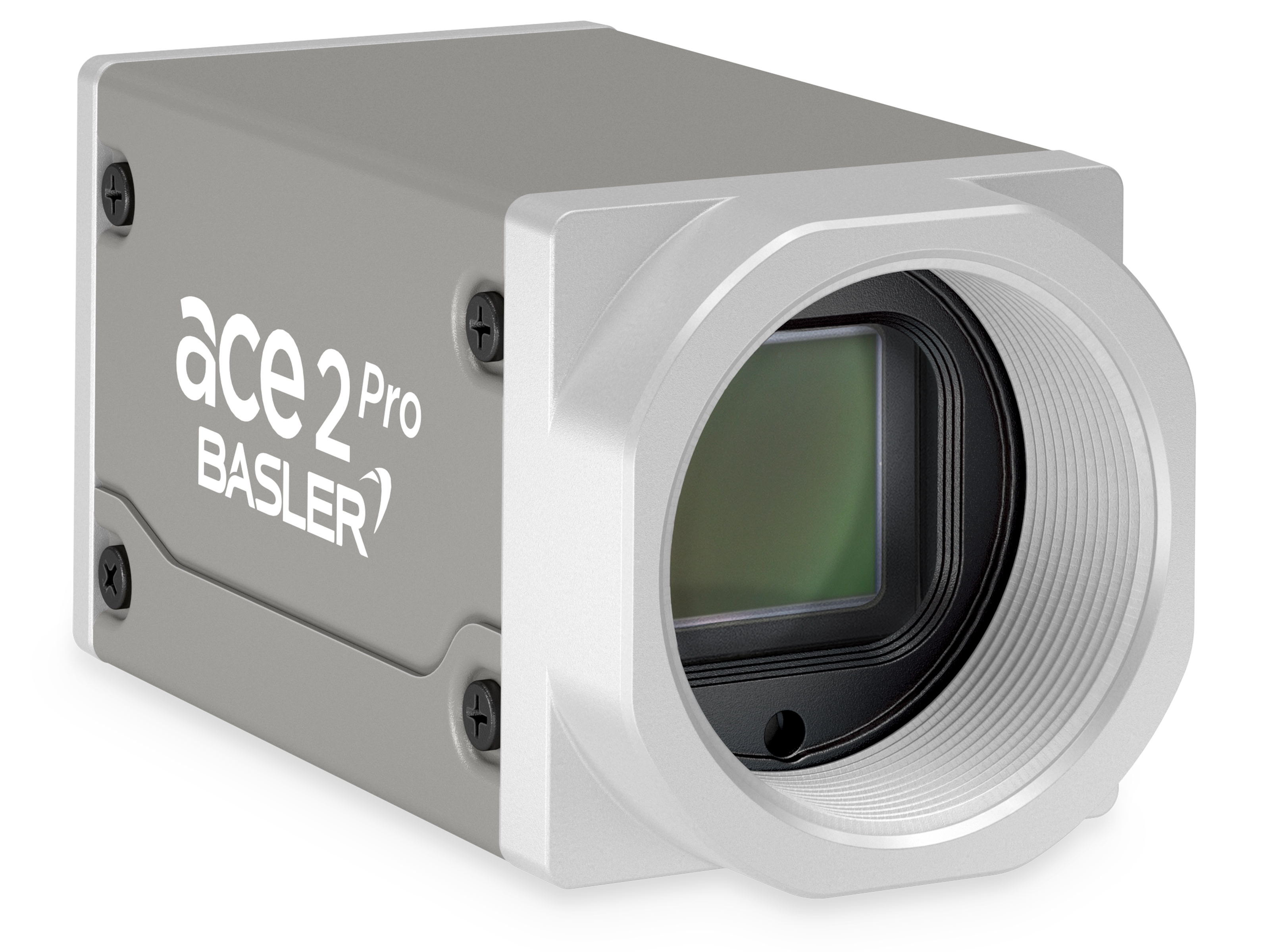

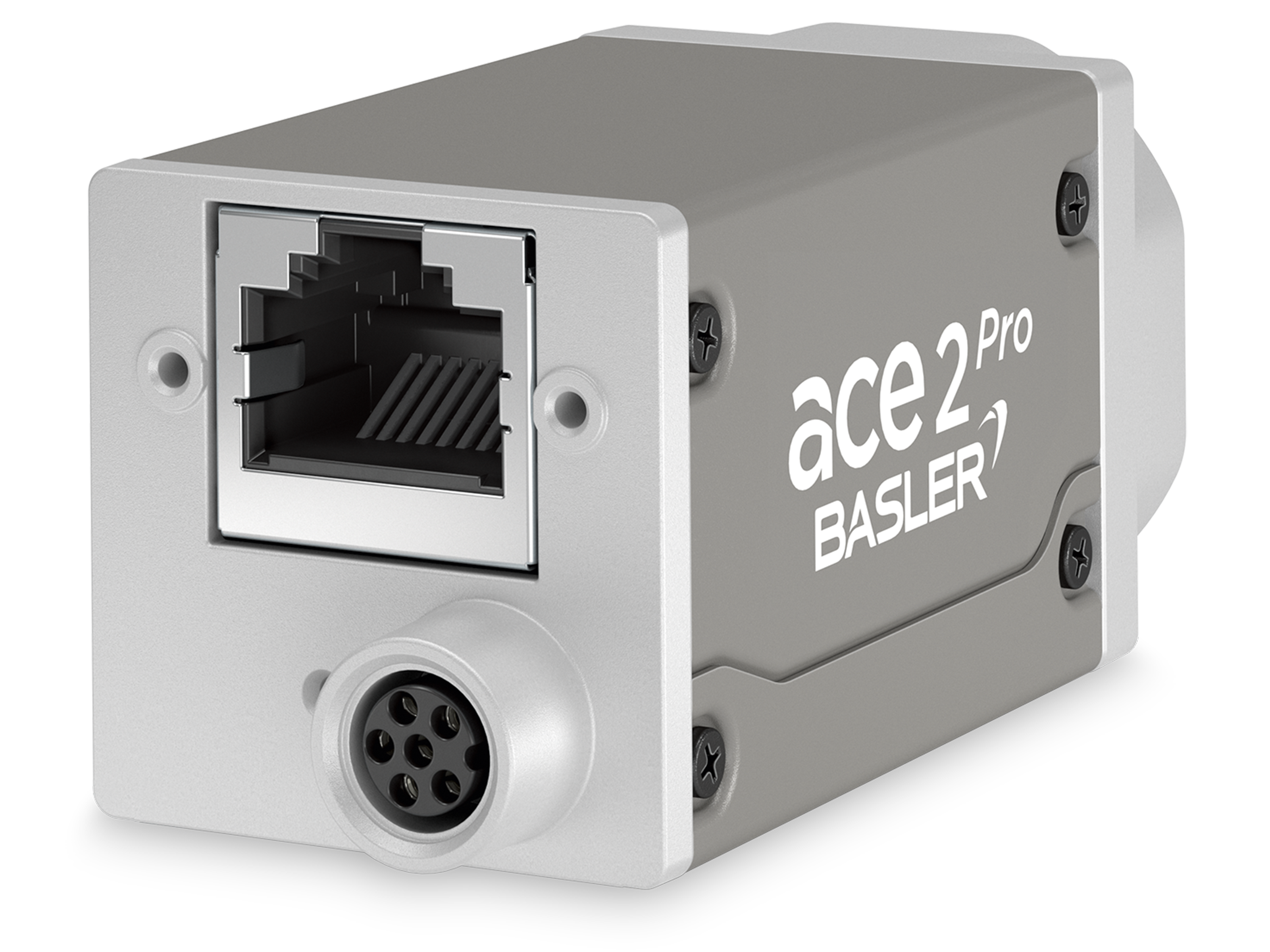

The Basler a2A4504-5gmPRO GigE camera with the Sony IMX541 CMOS sensor delivers 5 frames per second at 20.2 MP resolution.
Select your model
Select Product Line:
General Information
| Order Number | 108167 |
|---|---|
| Product Family | ace 2 R |
| Product Line | ace 2 R Pro |
| Camera Category | Area Scan Camera |
Sensor
| Sensor Vendor | Sony |
|---|---|
| Sensor | IMX541 |
| Shutter | Global Shutter |
| Sensor Format | 1.1" |
| Sensor Diagonal | 17.45 mm |
| Sensor Type | CMOS |
| Sensor Size | 12.34 mm × 12.34 mm |
| Resolution (H x V) | 4504 px × 4504 px |
| Resolution (MP) | 20.2 MP |
| Pixel Size (H x V) | 2.74 μm × 2.74 μm |
| Frame rate | 5 fpsCalculate individual frame rate |
| Frame Rate Compression Beyond | up to 13 fps |
| Mono/Color | Mono |
| Spectrum | Visible |
EMVA Data
| Quantum Efficiency (typical/minimal) | 66.2 % (typical) |
|---|---|
| Dark Noise (typical/maximal) | 2.2 e¯ (typical) |
| Saturation Capacity (typical/minimal) | 9.7 ke¯ (typical) |
| Dynamic Range (typical/minimal) | 70.9 dB (typical) |
| Signal-to-Noise Ratio (typical/minimal) | 39.9 dB (typical) |
Camera Data
| Interface | GigE |
|---|---|
| Image Data Interface | Fast Ethernet (100 Mbit/s), Gigabit Ethernet (1000 Mbit/s) |
| Pixel Bit Depth |
|
| Exposure Control |
|
| Digital Input | 1 |
| General Purpose I/O | 2 |
| Power Supply | PoE or 12-24 VDC |
| Power Requirements (typical) | 3.2 W |
Housing
| Housing Type | Box |
|---|---|
| Housing Size (L x W x H) | 55.5 mm x 29 mm x 29 mm |
| Weight | 105 g |
| Lens Mount | C-mount |
| Operating Temperature | -10 °C - 50 °C |
Technical Drawing
Manufacturer
| Basler |
|---|
Conformity
- CE (incl. RoHS)
- EAC
- FCC
- GenICam
- GigE Vision 2.0
- IP30
- KC
- RoHS
- UKCA
- UL
Features & Documentation
For more information about the features, visit the Documentation
