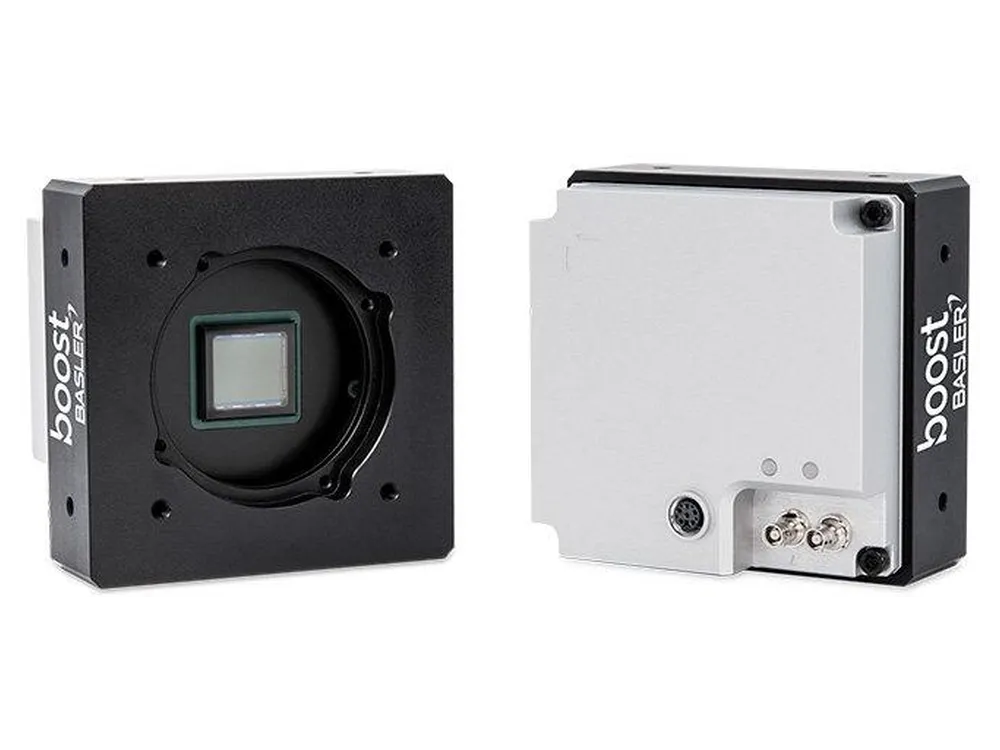

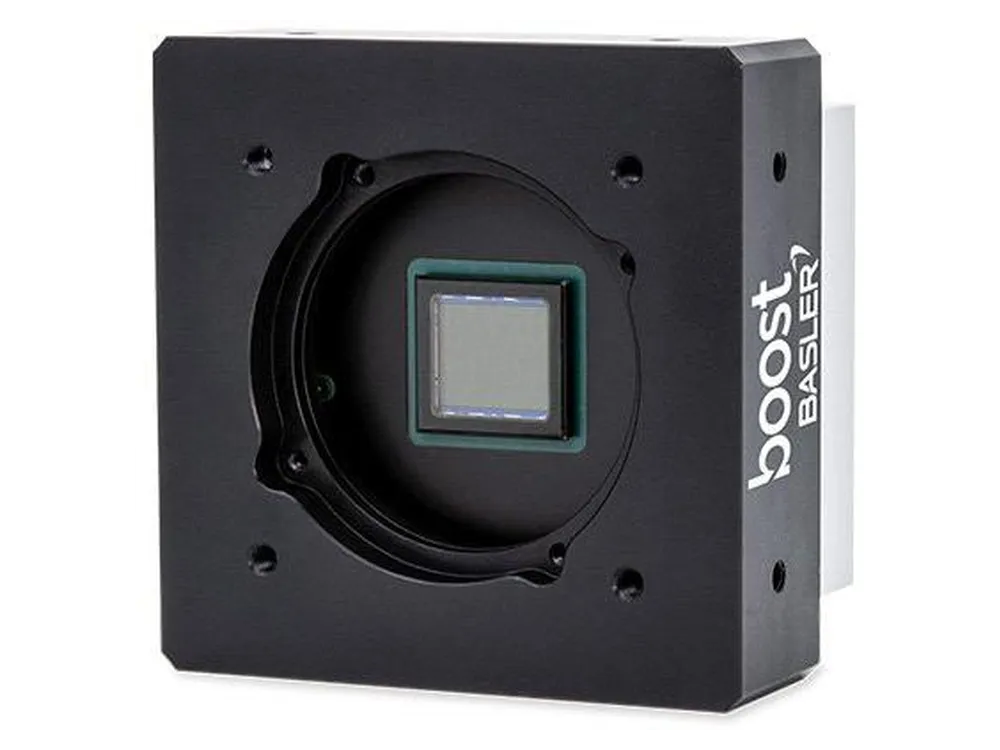

Basler boost R boA4504-100cc
- IMX531 Sensor
- 100 fps Frame rate
- CoaXPress (CXP-12) Interface
- 20 MP Resolution (MP)
- 1.1" Sensor Format
The Basler CoaXPress 2.0 boA4504-100cc camera with the Sony IMX531 CMOS sensor delivers 100 frames per second with a 20 MP resolution.
General Information
| Order Number | 108379 |
|---|---|
| Product Family | boost R |
| Camera Category | Area Scan Camera |
Sensor
| Sensor Vendor | Sony |
|---|---|
| Sensor | IMX531 |
| Shutter | Global Shutter |
| Sensor Format | 1.1" |
| Sensor Type | CMOS |
| Sensor Size | 12.3 mm × 12.3 mm |
| Resolution (H x V) | 4504 px × 4504 px |
| Resolution (MP) | 20 MP |
| Pixel Size (H x V) | 2.74 μm × 2.74 μm |
| Frame rate | 100 fpsCalculate individual frame rate |
| Mono/Color | Color |
| Spectrum | Visible |
Camera Data
| Interface | CoaXPress (CXP-12) |
|---|---|
| Image Data Interface | CoaXPress (2.5–12.5 Gbps) |
| Digital Input | 1 |
| General Purpose I/O | 2 |
| Power Requirements (typical) | 11.2 W |
Housing
| Housing Type | Box |
|---|---|
| Housing Size (L x W x H) | 45 mm x 80 mm x 80 mm |
| Weight | 525 g |
| Operating Temperature | max 50 °C |
Technical Drawing
Manufacturer
| Basler |
|---|
Conformity
- CE (incl. RoHS)
- CoaXPress 2.0
- KC
- RoHS
- UL
Features & Documentation
For more information about the features, visit the Documentation
